Lavaterhof Hanover apartment house walkways

Find out more

Key facts: Refurbishment of walkways

Location
Hanover
System
Completion
2016
Area
54 m² per walkway
Authorised Contractor
O. + D. Hartmann GmbH, Bad Nenndorf

Lavaterhof Hanover apartment house walkways

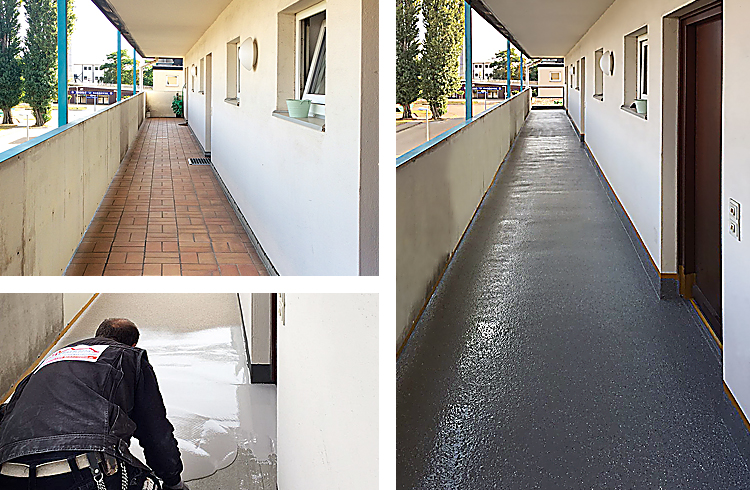

The dripping edge of the two walkways of a residential building in southern Hanover was covered with moisture. Over time it had damaged both the tiles and the screed. As a result, the property management company, HAUS & GRUNDEIGENTUM Service, Hanover, needed a refurbishment. The inhabitants use the walkways as access to their apartments
and so need to be usable again as soon as possible. A solution was therefore required that could be implemented quickly and with short closure periods. After detailed consultation by the commissioned company O. + D. Hartmann GmbH from Bad Nenndorf and the Minden-based liquid applied waterproofing specialist Triflex, the administration decided for the long-term waterproofing system Triflex BTS-P. The material adheres to various substrates and could be applied to the existing tiles without affecting the stability.

Refurbishment requirements

  • No demolition of the old covering
  • Quick application
  • Long-lasting waterproofing
  • Weather-resistant, robust surface
  • Slip-resistant

Refurbishment steps overview

  1. Removal of damaged tiles in the eaves area and levelling using the repair mortar Triflex Cryl Finish 215
  2. Abrading of the remaining, undamaged tiles
  3. Installing a new drip tray
  4. Priming the surface using Triflex Cryl Primer 276
  5. Priming and subsequent detail waterproofing of drip tray, wall connections, doors and drains with Triflex ProDetail
  6. Sealing of the surface with Triflex ProTerra
  7. Coating of the surface with Triflex ProFloor RS 2K and quartz sand dressing
  8. Finishing the surface with Triflex Cryl Finish 205 (dark grey) and Triflex Micro Chips (black and white)

THE COOPERATION WAS ABSOLUTELY SEAMLESS. THE RESULT IS FLAWLESS AND TECHNICALLY EXCELLENT.

HAUS & GRUNDEIGENTUM Service
