“Kaufhaus des Westens” ramps in multi-storey car park 1

Find out more

Key facts: Refurbishment of the car park

Location
Berlin
Completion
2015
Area
1,600 m² ramps
Authorised Contractor
Litterer Bautenschutz GmbH – Dresden branch

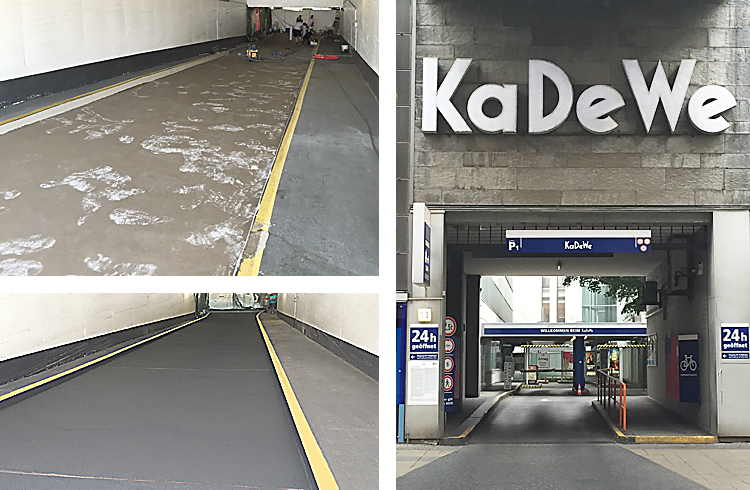

“Kaufhaus des Westens” Berlin ramps in multi-storey car park 1

Multi-storey car park 1 of the “Kaufhaus des Westens” department store in the heart of Berlin comprises approx. 700 parking spaces, which are connected on a total of 6 levels via 12 ramps. Mechanical wear in the course of its service life and the associated lack of noise protection on the connecting ramps were the main reasons for the refurbishment being necessary. Further refurbishment objectives were to reduce cost losses due to long shutdown periods and keep structural interference for KaDeWe customers to a minimum. A permanent system solution was also required for the extremely high frequency and mechanical load placed on the ramps. On behalf of KARSTADT Warenhaus GmbH as the client, Dipl. Ing. Michael Hänig of ibb Mangold was looking for an economical yet best technical solution. Together with Sebastian Lücke, the Triflex contact person, it was decided to use the top deck waterproofing system Triflex ProPark with a polymethyl methacrylate (PMMA) resin base.

Refurbishment requirements

  • Building-inspectorate approved class OS 10 products
  • Short closure periods
  • High slip resistance
  • High wear resistance of the wearing layer
  • Integration of details
  • Long-term safe solution

Refurbishment steps overview

Shot-blasting and cleaning details and surfaces
Priming with Triflex Cryl Primer 287
Scratch and levelling filler with Triflex DeckFloor
Sealing details, movement joints and kerb upstands with Triflex ProDetail
Sealing the surface with Triflex ProPark
Highly abrasion-resistant wearing layer with Triflex Cryl M 264

EXCELLENT TRIFLEX SUPPORT RIGHT FROM THE START AS WELL AS THE FAST IMPLEMENTATION OF THE PROJECT SPEAK UNEQUIVOCALLY FOR TRIFLEX.

Dipl. Ing. Michael Hänig of ibb Mangold
