Field report: Mercateum – the largest walk-in globe Königsbrunn

Find out more

Key facts: Waterproofing of water-landscape

Location
Königsbrunn
Completion
2007
Area
Approx. 300 m²
Authorised Contractor
Wildgrube & Sohn GmbH, Aichach

Mercateum – the largest accessible globe, Königsbrunn

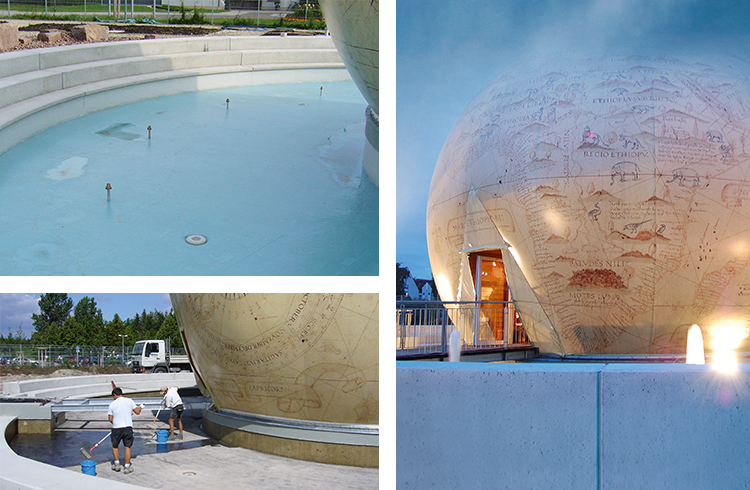

The Mercateum is the the largest accessible globe, a monument to trade relations between India and the Augsburg region in Königsbrunn. Situated between the Königstherme spa and the local grammar school, the globe is made of a world map by the Spanish cosmographer Diego Ribero. To ensure that the spherical monument rests securely and permanently above the water surface, master roofers from the local firm Wildgrube & Sohn GmbH coated the asphalt and concrete water basin with the Triflex ProTect waterproofing system. This is a project where the 2-component waterproofing resin can prove its great processing qualities as well as its suitability for hydraulic structures. The ten-metre-high globe is enthroned on a platform in the middle of a water basin, a faithful projection of the world map drawn on parchment in 1529. Inside, exhibits on five levels provide insights into the beginnings and heyday of long-distance trade. Two footbridges lead visitors over the surrounding water basin into the steel skeleton building.

Refurbishment requirements

  • Reliable waterproofing even with standing water
  • Fully bonded
  • Seamless and homogeneous liquid-applied waterproofing between elastic asphalt surface on the pool floor and the concrete walls
  • Colour design of floor area and walls

Refurbishment steps overview

  1. Abrading concrete and asphalt
  2. Priming with Triflex Cryl Primer 276 for concrete Triflex Cryl Primer 222 for asphalt substrate
  3. Waterproofing with Triflex ProTect in the surface; construction joints, details and vertical walls with Triflex ProDetail
  4. Waterproofing with Triflex Cryl Finish 205 in 5080 Aqua and 7035 light grey colours

TRIFLEX PROTECT IS THE IDEAL MATERIAL FOR RELIABLY SEALING BUILDINGS IN STANDING WATER. THE FLEECE-REINFORCED LIQUID APPLIED WATERPROOFING ADHERES FULLY TO THE SUBSTRATE AND IS RESISTANT TO HYDROLYSIS.

Master Roofer Jürgen Wildgrube, Wildgrube & Sohn GmbH
