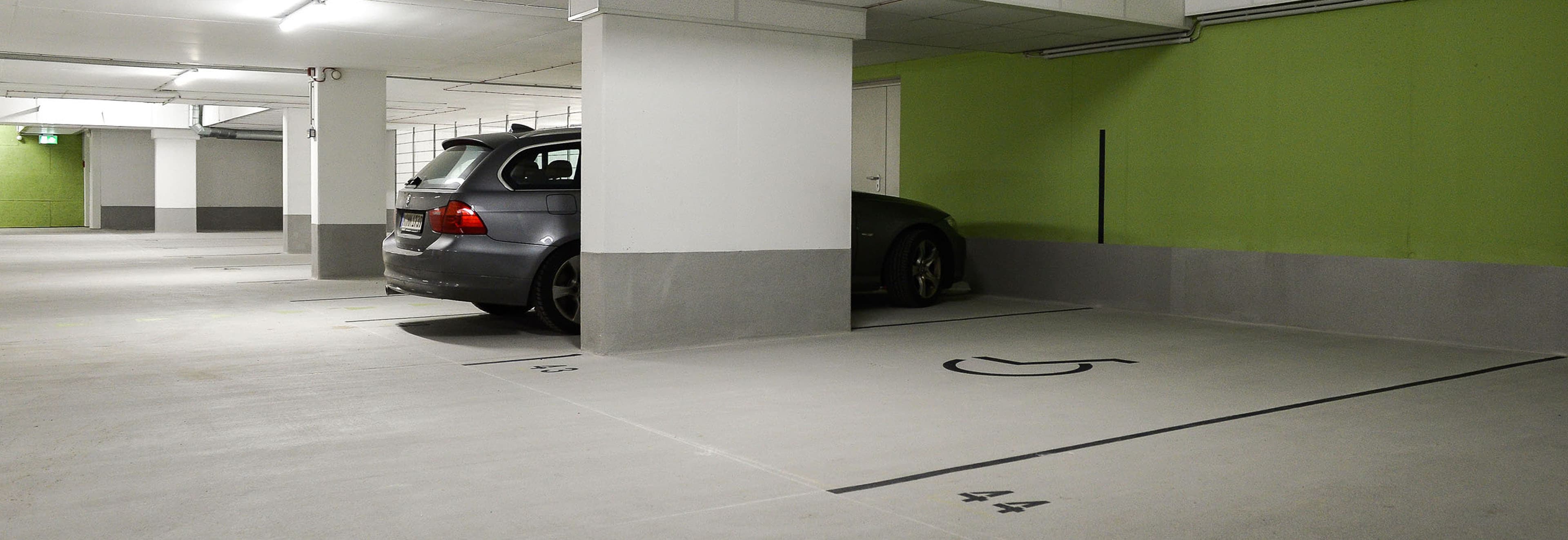

Triflex DeckCoat: thin coating for open intermediate decks

Triflex DeckCoat is a waterproof thin-layer system for less trafficked parking deck surfaces and parking spaces. This system, which is made of polymethyl methacrylate resin (PMMA), is specially developed for intermediate decks and offers a simple protection in a variety of colours and increased non-slip finish. Flashing, joints and details are carried out as fleece-reinforced waterproofing. Triflex DeckCoat is approved to OS 8 in accordance with Guideline SIB 2001 from the German Committee on Reinforced Concrete (DAfStb Rili SIB 2001, supplementary sheet 2005 and DINV 18026).

Planning documents

System build-up Triflex DeckCoat

Thumbnail
1

Primer

Triflex Glass Primer

Triflex Glas Primer

Triflex Glass Primer is used as a primer on unpolished glass substrates under various Triflex systems.

Consumption
Approx. 0.05 l/m² (50 ml) on a smooth, even surface
Product information

Triflex Metal Primer

Triflex Metal Primer

Triflex Metal Primer is used as a primer on various metals and rusty substrates.

Consumption
Approx. 0.15 l/m²
Product information

Triflex Cryl Primer 287

Triflex Cryl Primer 287

Triflex Cryl Primer 287 is used as a primer on absorbent substrates such as concrete, screed or wood for Triflex systems with a PMMA resin base.

Consumption
Min. 0.35 kg/m² on a smooth, even surface

Triflex Pox Primer 116+

Triflex Pox Primer 116+

Triflex Pox Primer 116+ is used as a primer, a filling primer and a roughness depth levelling material, primarily in the Triflex CPS-C+ and Triflex CPS-I+ systems.

Consumption
The volume depends on the system being used
2

Coating

Triflex Cryl Finish 209

Triflex Cryl Finish 209

Triflex Cryl Finish 209 is used as a finish on enhanced parking deck systems to increase the chemical and mechanical resistance

Consumption
Approx. 0.50 to 0.70 kg/m² on a smooth, even surface depending on area of use.

Quartz sand 0.7-1.2 mm

Hartkorn grob

Details can be found in the planning documents.

3

Finish

Triflex Cryl Finish 209

Triflex Cryl Finish 209

Triflex Cryl Finish 209 is used as a finish on enhanced parking deck systems to increase the chemical and mechanical resistance

Consumption
Approx. 0.50 to 0.70 kg/m² on a smooth, even surface depending on area of use.
4

Other/optional system components

Triflex ProDetail

Triflex ProDetail

Triflex ProDetail is used for details on flat roofs, balconies, terraces and covered walks as well as parking decks.

Consumption
Min. 3.00kg/m² on a smooth, even surface
Product information

Triflex Special Fleece

Triflex Spezialvlies

Triflex Special Fleece is used for reinforcement and layer thickness control with Triflex PMMA and PUR systems.

Consumption
/
Product information

Triflex Cryl RS 240

Triflex Cryl RS 240

Triflex Cryl RS 240 is a fast-curing, heavy-duty repair mortar for repairs to screeds and improvement work in exterior areas for thicknesses of 5 mm to 50 mm.

Consumption
Approx. 2.20 kg/m² per mm thickness on a smooth even surface.
Product information

Triflex Cryl Paste

Triflex Cryl Spachtel

Triflex Cryl Paste is used to level out any unevenness in the substrate and any fleece overlaps or depressions in Triflex systems.

Consumption
Approx. 1.40 kg/m² per mm thickness on a smooth even surface.
Product information

Triflex DeckFloor

Triflex DeckFloor

Triflex DeckFloor is used as a high-quality, durable coating for heavy-duty surfaces in the parking deck systems Triflex ProPark and Triflex DeckFloor. Triflex DeckFloor can also be used to produce scratch and levelling coats in multi-storey car parks.

Consumption
Min. 4.00 kg/m² on a smooth, even surface
Product information

Triflex FlexFiller

Triflex FlexFiller

Triflex FlexFiller is used in the sealing of joints.

Consumption
Approx. 1.40kg/m² per mm thickness on a smooth even surface.
Product information

Triflex Cleaner

Triflex Reiniger

Triflex Cleaner is used with all Triflex PMMA, EP, PU and PUA products. It is used to pre-treat substrates and to degrease metal when overcoating or if work is interrupted. In addition, soiled tools can be cleaned with Triflex Cleaner.

Consumption
Depending on the degree of soiling and the substrate (at least 0.20l/m²)
Product information

Triflex Support Strip

Triflex Trägerband

Triflex Support Strip is used as a support layer for the creation of a loop in settlement joints.

Consumption
/

PE round sealing band

PE-Rundschnur

Details can be found in the planning documents.

Cover plate

Details can be found in the planning documents.

Triflex Liquid Thixo

Triflex Stellmittel flüssig

Triflex Liquid Thixo is used as a thickening agent in Triflex PMMA products to allow the coating of vertical surfaces. It is not suitable for EP or PUR products.

Consumption
Amount to be added up to 1% by weight.
Product information

Triflex UltraCleaner

Triflex UltraCleaner

Triflex UltraCleaner is used as a universal cleaning and degreasing agent for treating Triflex surfaces.

Consumption
Depending on the degree of soiling and the substrate
Product information

Specifications & System drawings

Specifications
System drawings

Application steps

Thumbnail
Prime junctions and surface.
1/6
Thumbnail
Junctions, details and …
2/6
Thumbnail
... joints are waterproofed using Triflex ProDetail.
3/6
Thumbnail
Apply the coating Triflex Cryl Finish 209 evenly.
4/6
Thumbnail
The wet coating is sanded down with quartz sand in excess.
5/6
Thumbnail
The surface is then finished with Triflex Cryl Finish 209.
6/6
